Admin ConsoleReporting

Splunk SIEM

Splunk Enterprise is a security information and event management (SIEM) platform that can be used with Bitwarden organizations. Organizations can monitor event activity with the Bitwarden Event Logs app on their Splunk dashboard.

Setup

Create a Splunk account

Installing the Bitwarden app on Splunk requires a Splunk Enterprise account. Bitwarden event monitoring is available on:

  • Splunk Enterprise

  • Spunk Cloud Classic

  • Splunk Cloud Victoria

Install Splunk

For on-premise Splunk users, the next step is to install Splunk Enterprise. Follow the Splunk documentation to complete an install of the Splunk Enterprise software.

note

Splunk Enterprise versions 8.X are no longer supported. Currently Bitwarden is supported on versions 9.0, 9,1, and 9.2.

Create an index

Before connecting your Bitwarden organization to your Splunk Dashboard, create an index that will maintain Bitwarden data.

  1. Open the Settings menu located on the top navigation bar and select Indexes.

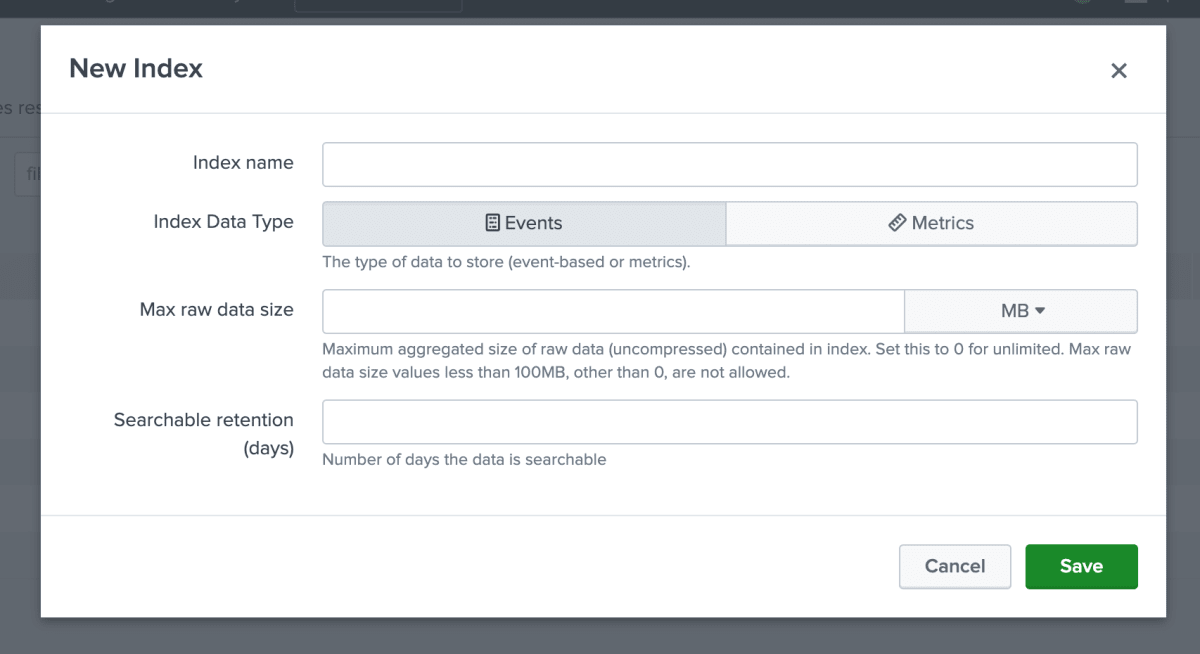

  2. Once you are on the indexes screen, select New Index. A window will appear for you to create a new index for your Bitwarden app.

    New Index
    New Index

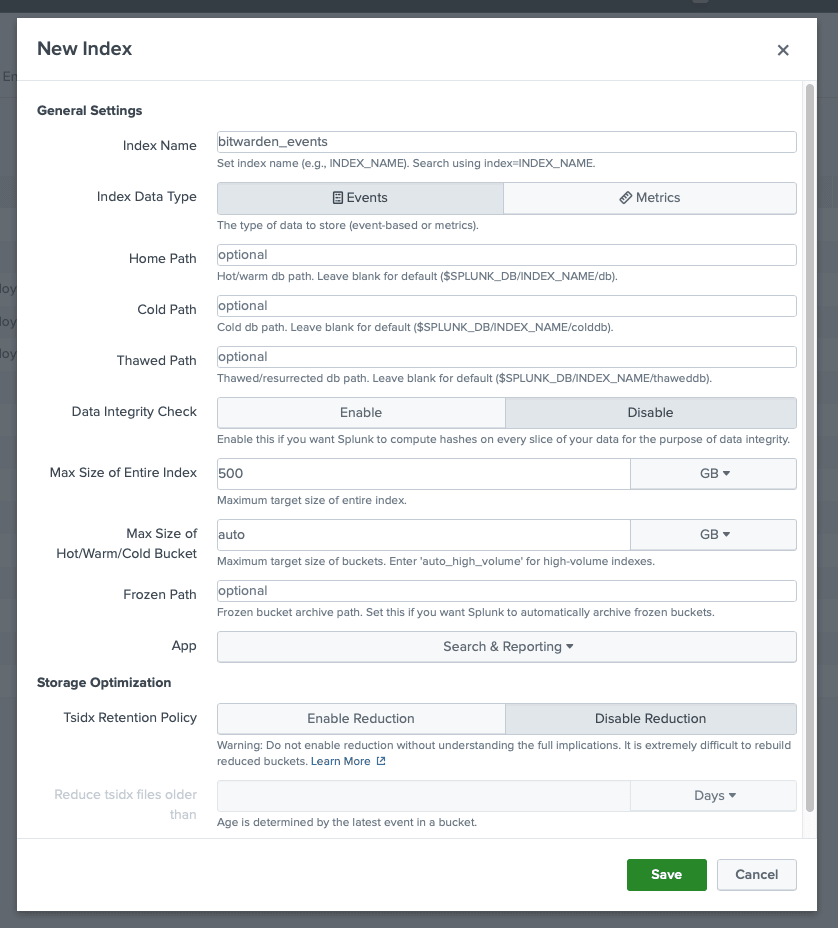

    New Index Enterprise
    New Index Enterprise

  3. In the Index Name field, enter bitwarden_events.

  4. Apply your required values for Max raw data size and Searchable retention.

  5. When you are finished, select Save.

Install the Splunk Bitwarden app

After your Bitwarden index has been created, navigate to your Splunk dashboard.

  1. Open the Apps drop down menu and select Find More Apps.

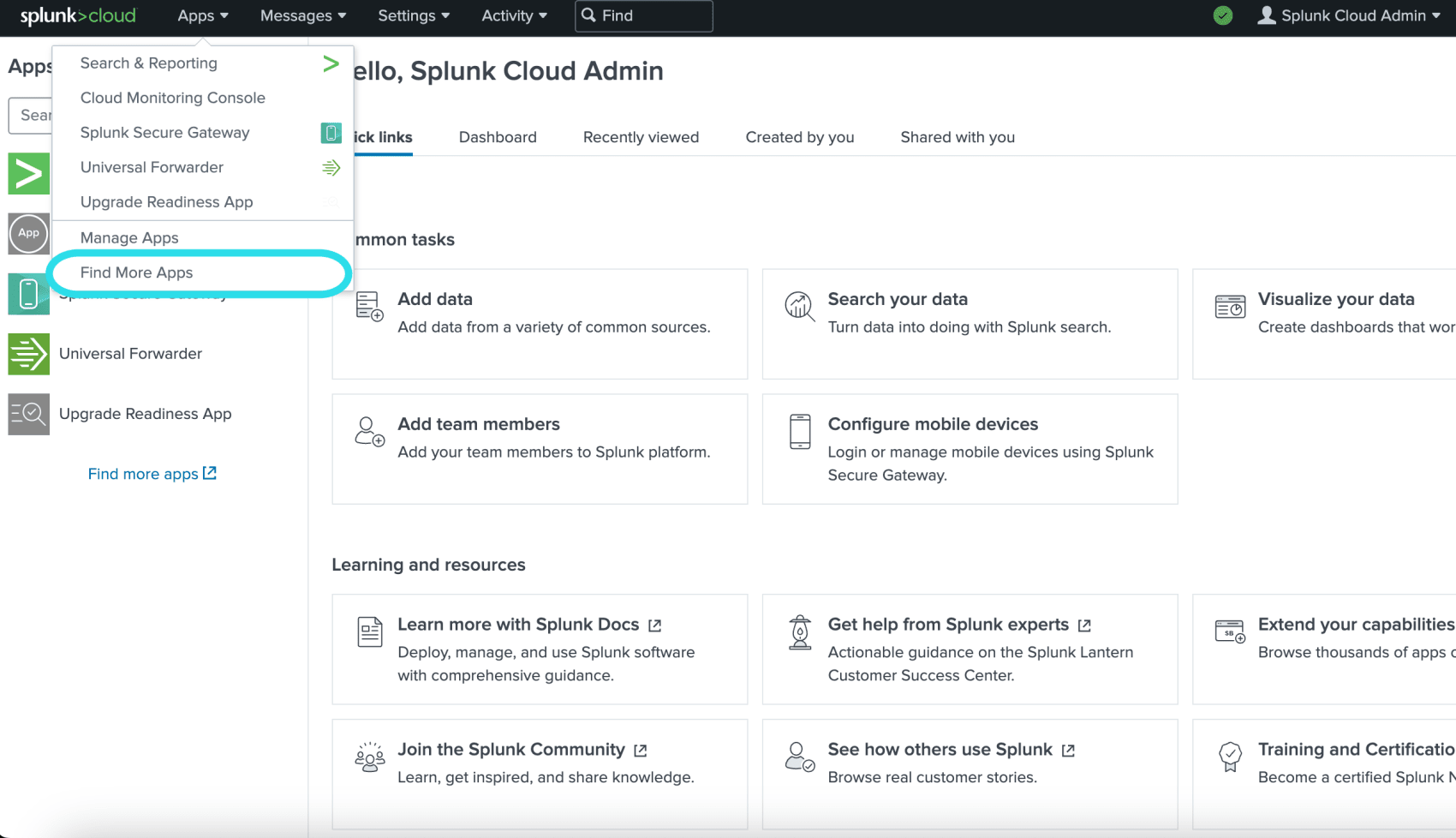

    Splunk apps dashboard
    Splunk apps dashboard
  2. Select Browse more apps.

  3. Search Bitwarden Event Logs in the app catalogue. Select Install for the Bitwarden Event Logs app.

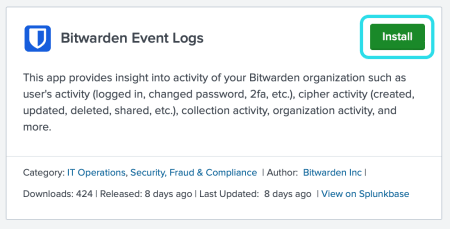

    Bitwarden event logs app
    Bitwarden event logs app
  4. In order to complete the installation, you will need to enter your Splunk account. Your Splunk account may not be the same credentials used to access your Splunk portal.

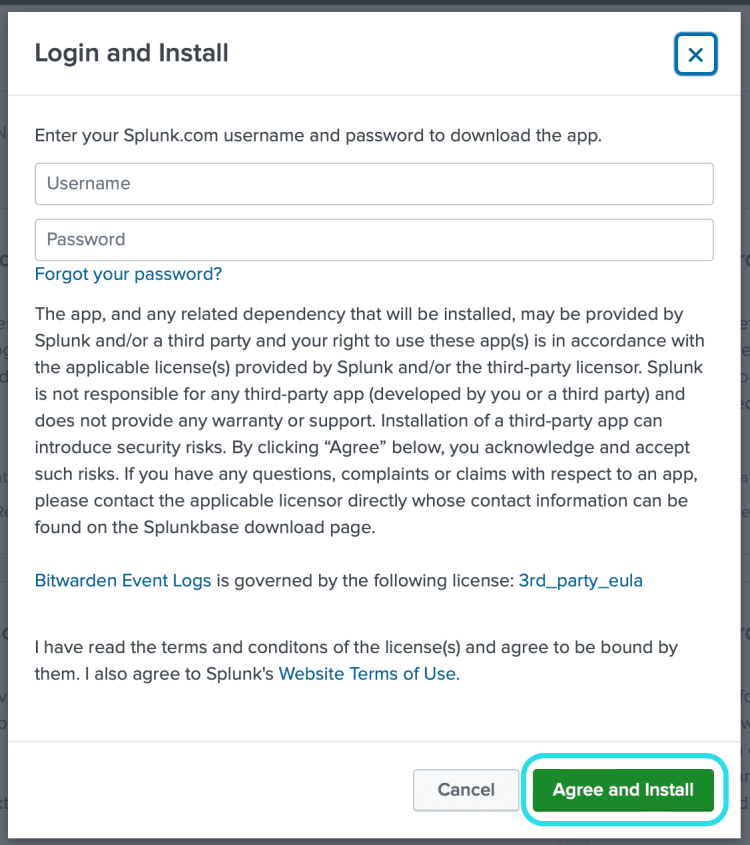

    Login and install Bitwarden app on Splunk
    Login and install Bitwarden app on Splunk
  5. After you have entered your information, select Agree and Install.

note

Following the Bitwarden Event Logs app download, you may be required to restart Splunk.

Connect your Bitwarden organization

Once the Bitwarden Event Logs app has been installed in your Splunk Enterprise instance, you can connect your Bitwarden organization using your Bitwarden API key.

  1. Go to the dashboard home and select the Bitwarden Event Logs app:

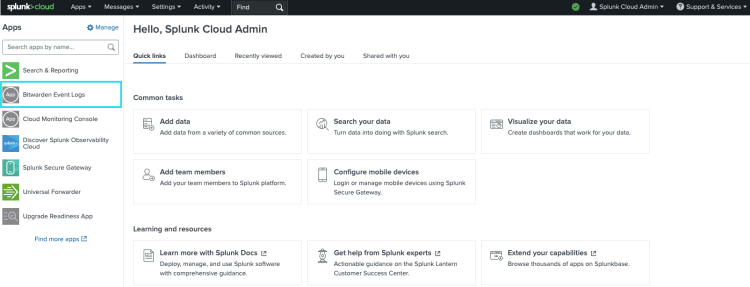

    Bitwarden on Splunk dashboard
    Bitwarden on Splunk dashboard
  2. Next, on the App configuration page, select Continue to app setup page. This is where you will add your Bitwarden organization's information.

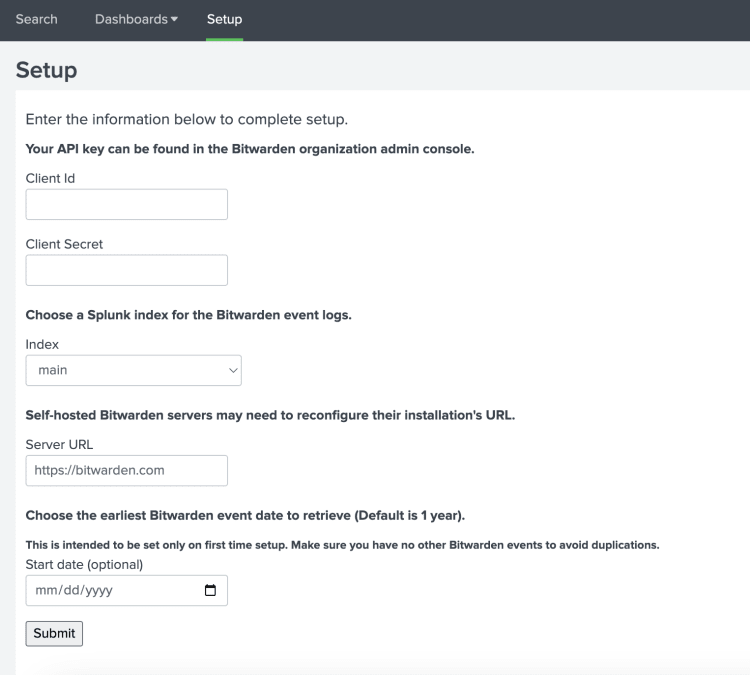

    Setup Bitwarden menu
    Setup Bitwarden menu
  3. Keep this screen open, on another tab, log in to the Bitwarden web app and open the Admin Console using the product switcher:

    Product switcher
    Product switcher
  4. Navigate to your organization's SettingsOrganization info screen and select the View API key button. You will be asked to re-enter your master password in order to access your API key information.

    Organization api info
    Organization api info
  5. Copy and paste the client_id and client_secret values into their respective locations on the Splunk setup page.

Complete the following additional fields as well:

Field

Value

Index

Select the index that was created previously in the guide: bitwarden_events.

Server URL

For self-hosted Bitwarden users, input your self-hosted URL.

For cloud-hosted organizations, use the URL https://vault.bitwarden.com or https://vault.bitwarden.eu.

Start date (optional)

Set a start date for data monitoring. When not set, the default date will be set to 1 year.
This is a one time configuration, once set, this setting cannot be changed.

note

Your organization API key information is sensitive data. Do not share these values in nonsecure locations.


Once done, select Submit.

Understanding Search Macro

The bitwarden_event_logs_index search macro will be created following the initial Bitwarden Event Logs install. To access the macro and adjust settings:

  1. Open the Settings on to top navigation bar. Then, select Advanced Search.

  2. Select Search Macros to open the list of search macros.

Search macro permissions

Next, setup which user roles will have permission to use the macro:

  1. View macros by selecting Settings Advanced Search Search macros.

  2. Select Permissions on bitwarden_events_logs_index. Edit the following permissions and select Save once complete:

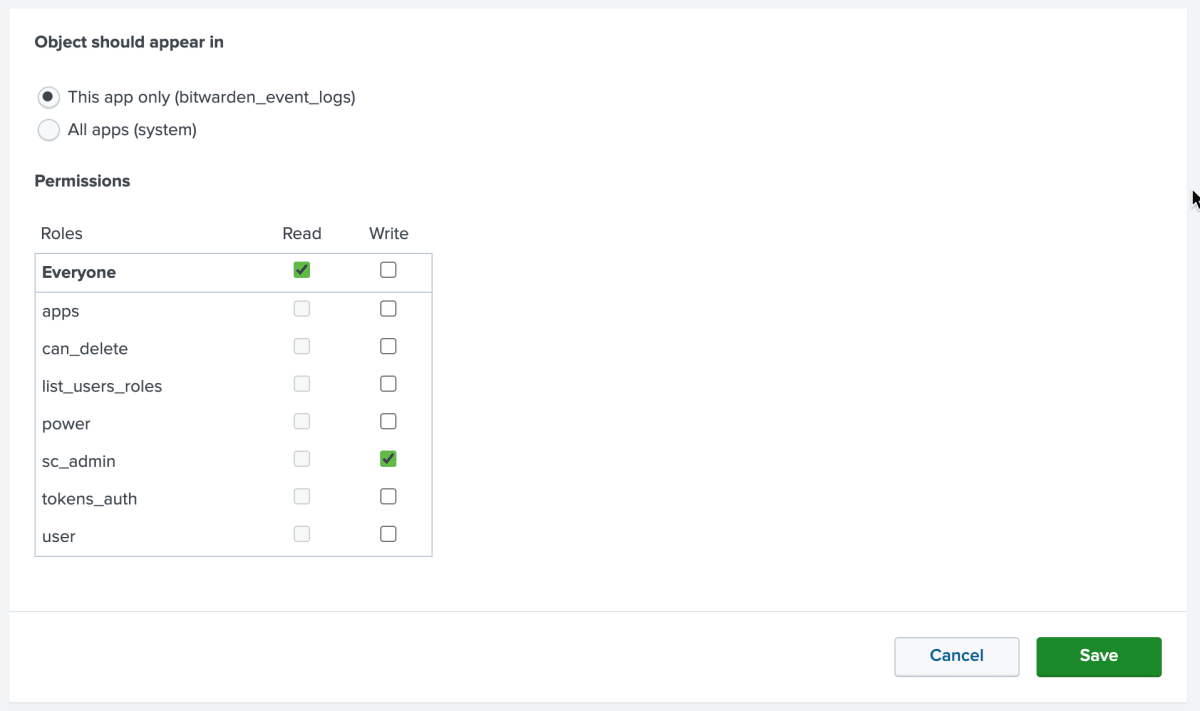

    Search Macro Permissions
    Search Macro Permissions

Field

Description

Object should appear in

In order to use the macro in event searching, select This app only. The macro will not apply if Keep private is selected.

Permissions

Select the desired permissions for user roles with Read and Write access.

note

Only one search macro will be functional on the app at a given time.

Understanding the dashboards

The Dashboard will provide several options for monitoring and visualizing Bitwarden organizational data. The three primary categories of data monitoring include:

  • Bitwarden authentication events

  • Bitwarden vault item events

  • Bitwarden organization events

The data displayed on the dashboards will provide information and visualization for a broad variety of searches. More complex queries can be completed by selecting the Search tab at the top of the dashboard.

Timeframe

While searching from the Search page or Dashboards, searches can be designated to a specific timeframe.

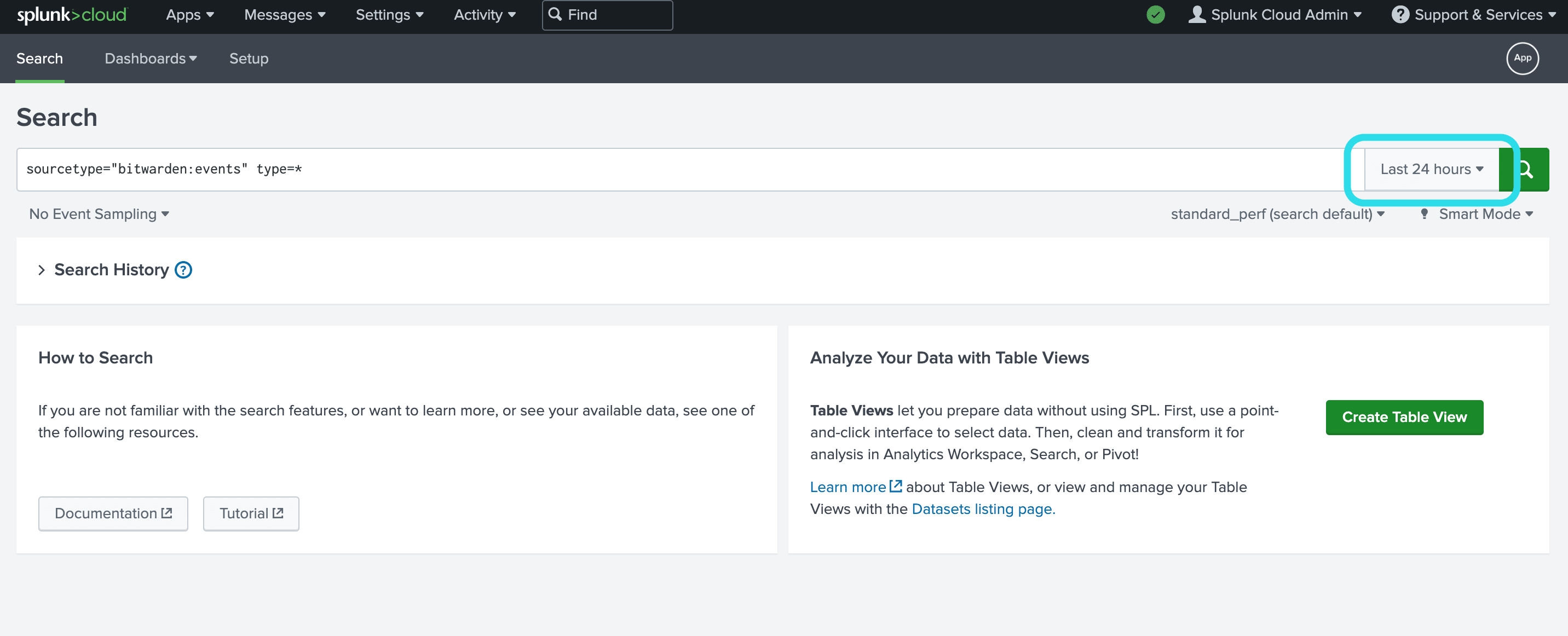

Splunk timeframe search
Splunk timeframe search
note

For on-premises users, the following timeframes are supported for Bitwarden event logs searches:

  • Month to date

  • Year to date

  • Previous week

  • Previous business week

  • Previous month

  • Previous year

  • Last 30 days

  • All time

Query parameters

Set up specific searches by including search queries. Spunk utilizes its search processing language (SPL) method for searching. See Splunk's documentation for additional details on searches.

Search structure:

Bash
search | commands1 arguments1 | commands2 arguments2 | ...

An example of a standard search result object:

Splunk search result object
Splunk search result object

The fields shown in the standard search object can be included in any specific search. This includes all of the following values:

Value

Example result

actingUserEmail

The email of the user performing the action.

actingUserId

Unique id of user performing action.

actingUserName

Name of the user performing an action.

date

Date of event displayed in YYYY-MM-DD TT:TT:TT format.

device

Numerical number to identify the device that the action was performed on.

hash

Splunk computed data hash. Learn more about Splunk's data integrity here.

ipAddress

The ip address that performed the event.

memberEmail

Email of the organization member that the action was directed towards.

memberId

Unique id of the organization member that the action was directed towards.

memberName

Name of organization member that action was directed towards.

type

The event type code that represents the organization event that occurred. See a complete list of event codes with descriptions here.

Search all:

Bash
sourcetype="bitwarden:events" type=*

Filter results by a specific field

In the following example, the search is looking for actingUserName with a * wildcard which will display all results with actingUserName.

Bash
sourcetype="bitwarden:events" actingUserName=*

The AND operator is implied in Splunk searches. The following query will search for results containing a specific type AND actingUserName.

Bash
sourcetype="bitwarden:events" type=1000 actingUserName="John Doe"

Include multiple commands by separating with |. The following will show results with the top value being ipAddress.

Bash
sourcetype="bitwarden:events" type=1115 actingUserName="John Doe" | top ipAddress

Additional resources

Set user roles

Manage users roles to allow individuals to perform specific tasks. To edit user roles:

1. Open the Settings menu on the top navigation bar.

2. Select Users from the bottom right corner of the menu.

3. From the users screen, locate the user that you wish to edit permissions for and select Edit.

Splunk edit user permissions
Splunk edit user permissions

From this screen, details for the user can be filled out. Permission such as admin, power, and can_delete can be individually assigned here as well.

Delete data

Delete Bitwarden search data by clearing the index with SSH access. Data may need to be cleared in instances such as changing the organization being monitored.

  1. Access the Splunk directory and stop Splunk processes.

  2. Clear the bitwarden_events index with -index flag. For example:

    Bash
    splunk clean eventdata -index bitwaren_events

  3. Restart Splunk processes.

Troubleshooting

  • Splunk Enterprise users, the app will log to: /opt/splunk/var/log/splunk/bitwarden_event_logs.log

    If you are experiencing any errors, or the Bitwarden app is not functioning correctly, users can check the log file for errors or see Spunk's documentation.
